Aluminum Fence Styles and Specifications

Aluminum Flat Top Fence

The flat-top style, a timeless and versatile design, lends a touch of sophistication to any property. Whether you're securing your home or adding a stylish boundary to a commercial space, this style of aluminum fencing delivers both form and function.

Orange circular logo reading “PENNSYLVANIA CENTRAL” around the edge.

KEY FEATURES

  • Lightweight, durable aluminum provides strength.
  • Available in three levels of strength and durability for residential, commercial and industrial fencing applications.
  • Advanced powder coating provides a long-lasting finish.
  • Extremely low maintenance.
  • Pool code approved models available.
  • Large choice of heights, section widths, styles, colors and design options.
  • Available with several gate options.
  • Option to add Magena Star post cap lighting for even more function and beauty.
  • Made in America by DSI, one of the country’s trusted fence manufacturers.
  • Lifetime limited warranty.

PRODUCT DETAILS

Heights
3000 Series: 36", 42", 48", 50", 55", 60", 72"
4000 Series: 48", 48.5", 54", 60", 72"
5000 Series: 48", 54", 55", 60", 72", 84", 96"
6000 Series: 48", 55", 60"
Not all models are available in all heights
Section Width
3000 Series: 6' Centers
4000 Series*: 8' Centers
5000 Series: 8' Centers
6000 Series: 6' Centers
Rails
3000 Series: 1-1/8"W (.065") x 1"H (.085")
4000 Series: 1-1/4"W (.070") x 1-1/2"H (.110")
5000 Series: 1-1/2"W (.070") x 1-1/2"H (.095")
6000 Series: 1"W x 1"H (.050")
Spear/Finial Pickets
3000 Series: 5/8" x 5/8" (.045")
4000 Series: 3/4" x 3/4" (.053")
5000 Series: 1" x 1" (.062")
6000 Series: 5/8" x 5/8" (.035")
Non-Spear/Finial Pickets
3000 Series: 5/8" x 5/8" (.045")
4000 Series: 3/4" x 3/4" (.045")
5000 Series: 1" x 1" (.062")
6000 Series: 5/8" x 5/8" (.035")
Standard Picket Spacing
3000 Series: 3-13/16" Between Pickets
4000 Series: 3-15/16" Between Pickets, Pool Models and 6' Centers have 3-9/16" Between Pickets
5000 Series: 3-3/4" Between Pickets
6000 Series: 3-13/16" Between Pickets
Picket Top Options
3000 Series: Spear, Triad, Quad, and Fleur-De-Lis
4000 Series: Spear, Triad, Quad, and Fleur-De-Lis
5000 Series: Spear, Triad, and Quad
6000 Series: Spear

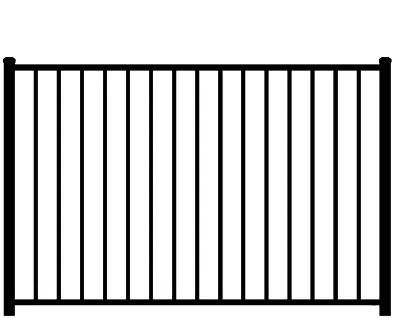

Black metal fence with vertical bars on a white background

Classic Flat Top

2-Rail Flush Bottom Pool

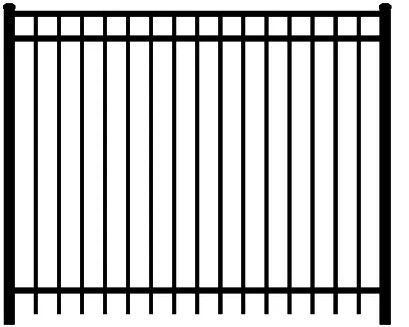

Black metal fence with vertical bars and two horizontal rails on a white background

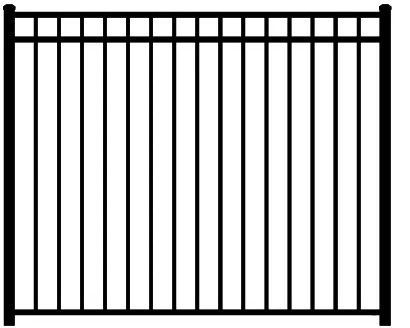

Classic Flat Top

3-Rail

Black metal fence with vertical bars and a top rail on a white background

Classic Flat Top

3-Rail Flush Bottom

Black metal fence with vertical bars and horizontal rails on a white background

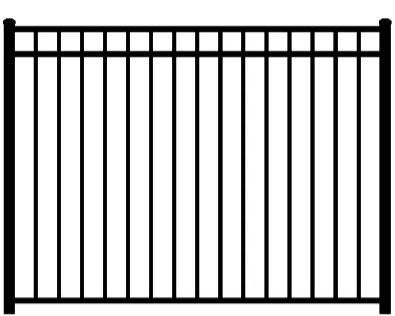

Classic Flat Top

3-Rail Flush Bottom Pool

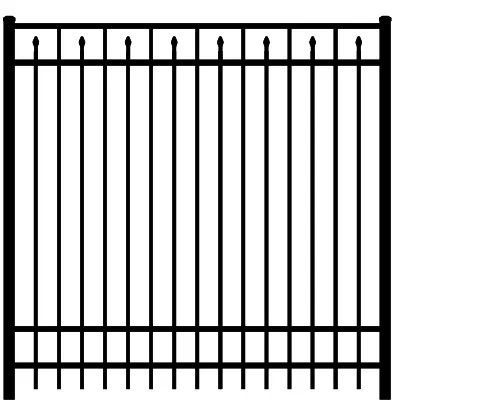

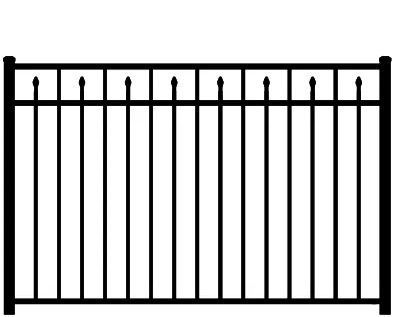

Black metal fence with vertical bars and pointed finials on a white background

Classic Flat Top

3-Rail Flush Bottom

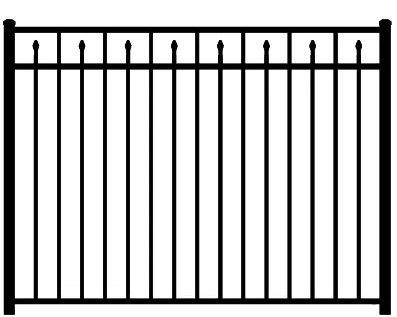

Black metal fence with vertical bars and pointed finials on a white background

Classic Flat Top

3-Rail Flush Bottom Pool

Black wrought-iron fence with vertical bars and decorative spikes on top.

Classic Flat Top

4-Rail

MODELS

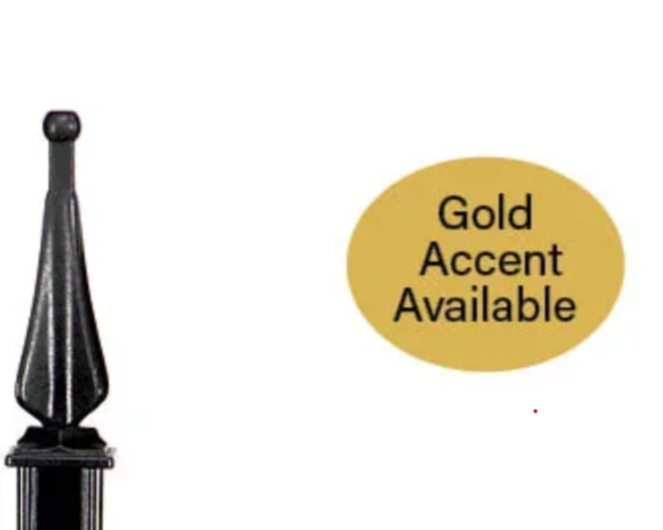

Black finial with gold “Gold Accent Available” badge

Quad Finial

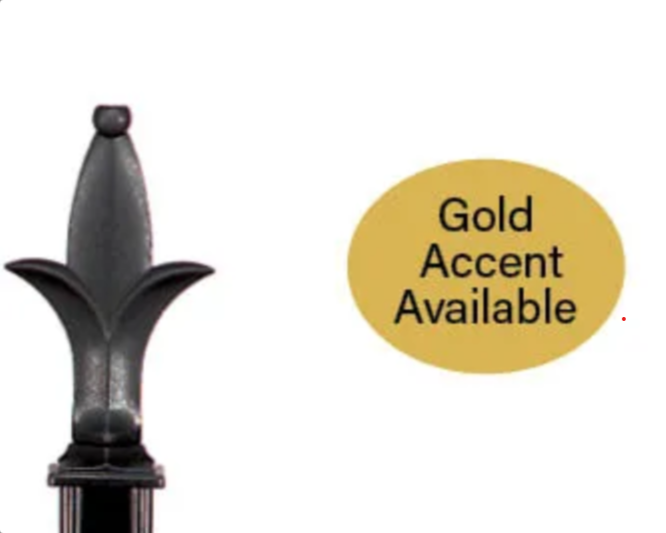

Black decorative fence post with a gold “Gold Accent Available” label.

Triad Finial

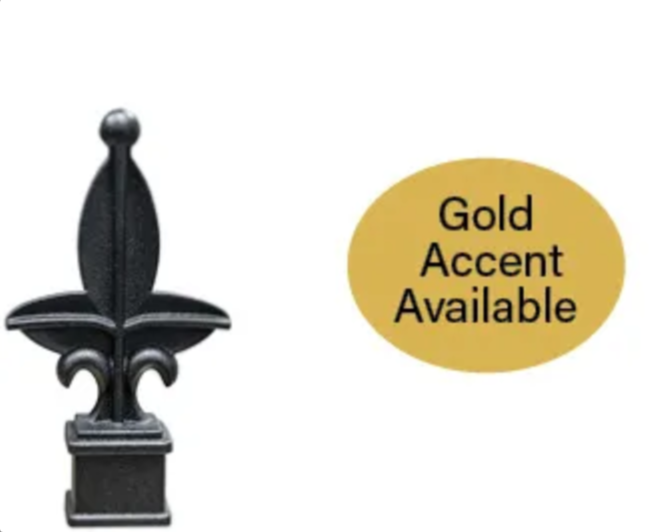

Black decorative finial with gold oval reading “Gold Acct Available”

Fleur-de-Lis Finial

5/8" Shown

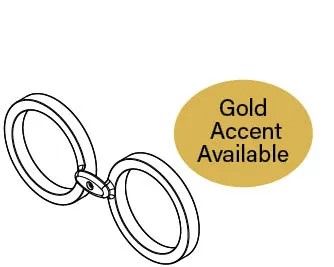

Gold oval eyeglasses with a yellow label reading “Gold Accent Available”

2 Ring Bar

3000 and 4000 Series

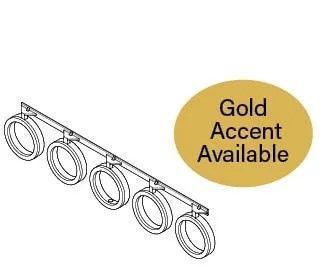

Gold ceiling spotlight track with five rings and a gold oval label reading “Gold Accent Available”

5 Ring Bar

5000 Series

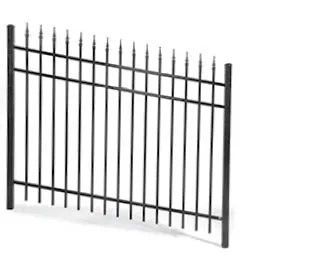

Black metal decorative fence panel with pointed vertical bars and curved top rail

Double Punch Section

Black metal fence with vertical bars and a top rail on a white background

Puppy Pickets (Short Pickets)

For 36" and 42" heights

Black metal fence with vertical bars and a denser lower section against a white background

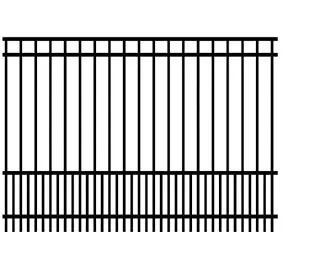

Puppy Pickets (Short Pickets)

For heights 48" and above

Gray open-top rectangular box or tower with slanted sides and two light gray panels

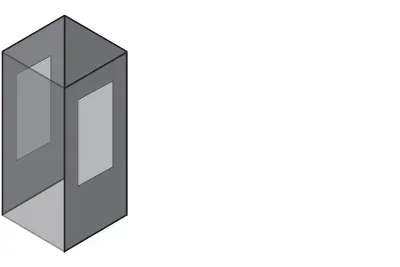

Line Post

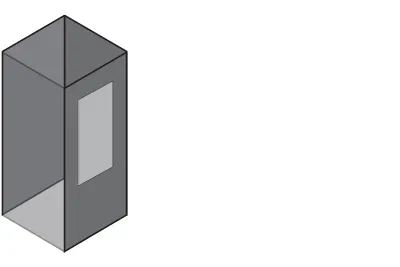

Gray open box with a slanted top and a light panel on one side

End Post

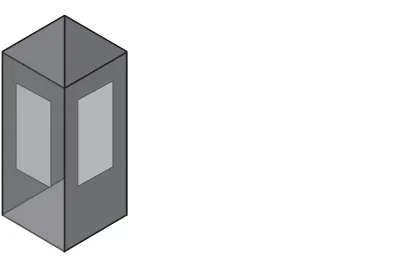

Gray hexagonal tower with angled roof panels and light rectangular side panels

Corner Post

Gray geometric 3D tower-like structure with angled panels and cutout openings

3-Way Post

Black device next to gold oval label reading “Gold Accet Available”

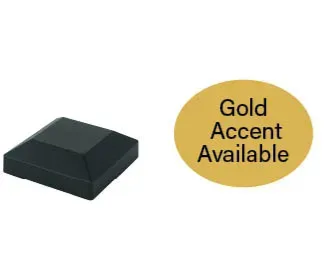

Flat Cap

Black rubber stamp next to gold oval label reading “Gold Accent Available”

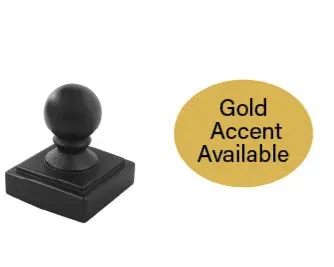

Ball Cap

Gray plastic mounting bracket with four corner screw holes and a square center opening

Post Mount (Includes Flair)

2-1/2" Shown

Gray metal post welded to a square base plate with four bolt holes.

Welded Plate Option

Black 3D diamond-shaped frame with a hollow center on a white background

Flair (2-piece)

Gray 3D CAD drawing of a mechanical bracket with mounting holes and a square opening

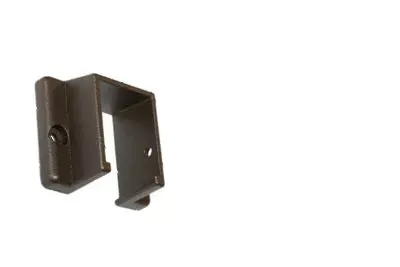

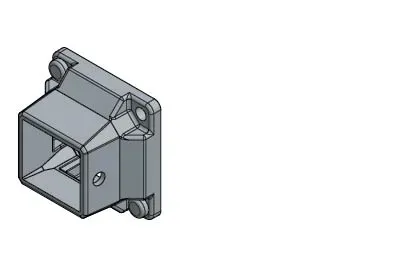

Wall Mount

Black metal wall bracket with a mounting hole on a white background

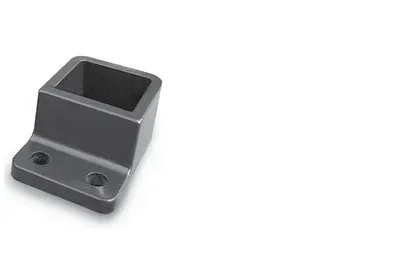

Wall Mount

Black metal mounting bracket with a square tube and two bolt holes on a base plate

Wall Mount

Black plastic wall-mounted bracket with a square opening and four screw holes

Swivel Mount

OPTIONS
